Create a new PMApp project

In order to create a PMApp for data rodeos you should follow the following steps:

  • Start a new WPF Windows Application in Visual Studio (If you do not have installed Visual Studio click here to get the latest version)

    WPF

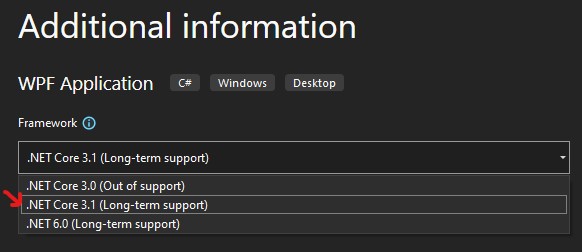

    • Make sure that the selected framework is .NET Core 3.1

    WPF

  • Add the PM4H Nugets Repository in Visual Studio (http://158.42.166.249/NugetProduction/nuget)

  • Install the pm4h.PMApp.core Nuget package

  • Add a pm4h.PMApp.core.PMAppControl object in the MainWindow

   public partial class MainWindow : Window
    {
        PMAppControl pmappcontrol = new PMAppControl();
        public MainWindow()
        {
            pmappcontrol.Show();
            InitializeComponent();
            Content = pmappcontrol;
        }
    }

  • To configure the application:

    • For process miners, add PMAppWinConfig.ActiveConfig = new PMAppDataMinerWinConfig(); in the MainWindow

    • For health professionals, add PMAppWinConfig.ActiveConfig = new PMAppClientWinConfig(); in the MainWindow
