Trace Information perspective

The TRACE INFORMATION perspective displays a list of traces (1) that traverse a transition or node. This menu allows you to select any trace to see its details. Once a trace is selected, the following will be shown:

  • The nodes it traverses (2) will be shown on the right, indicating times
  • Trace metadata (3)
  • Event metadata (4) will be shown if you click on any of the events of the trace (2)
  • The process view (5), highlighting the events the trace traverses

trace_information

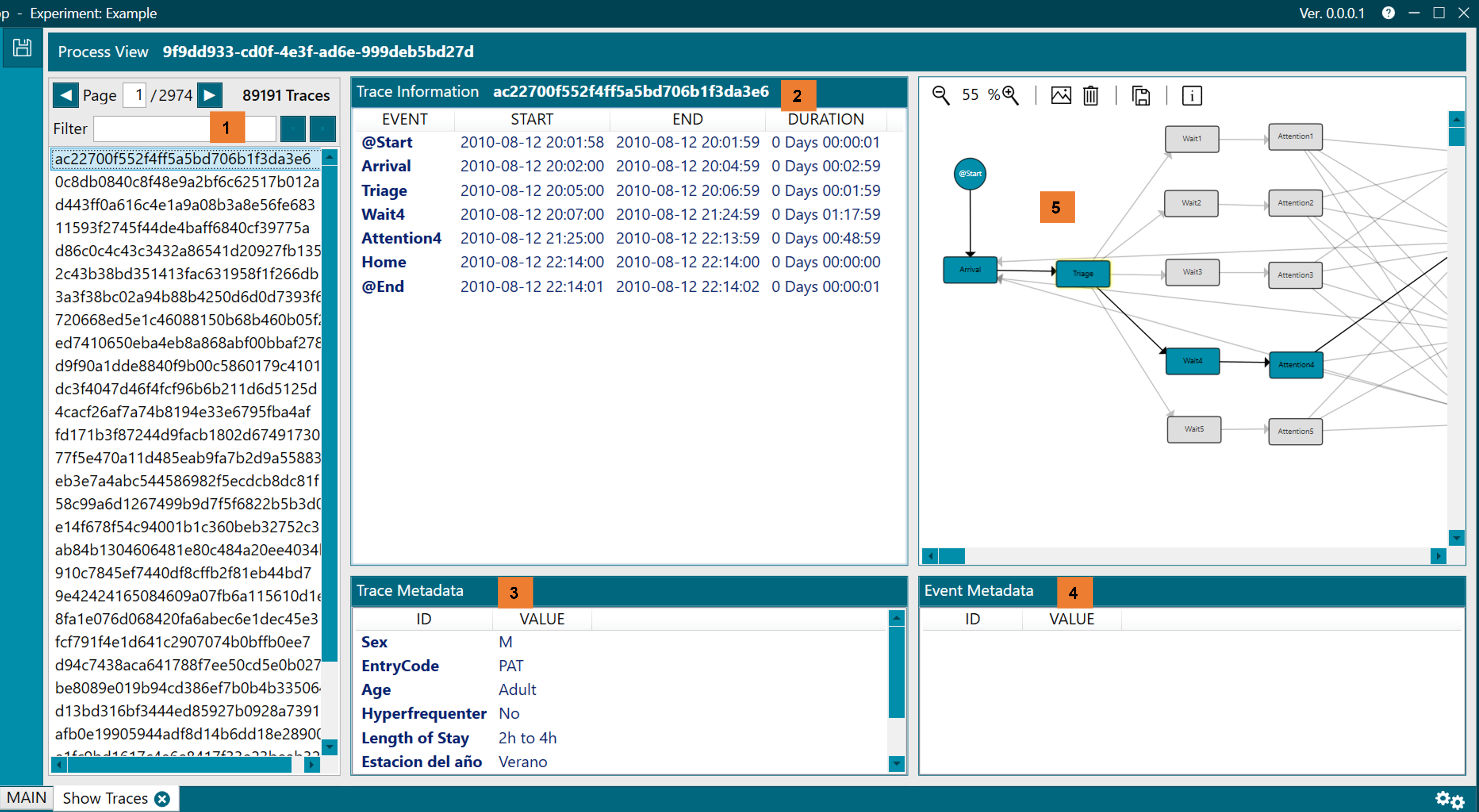

Figure 1. Trace information

As shown in figure 2, this view allows saving a CSV file with the trace data.

trace_information_save

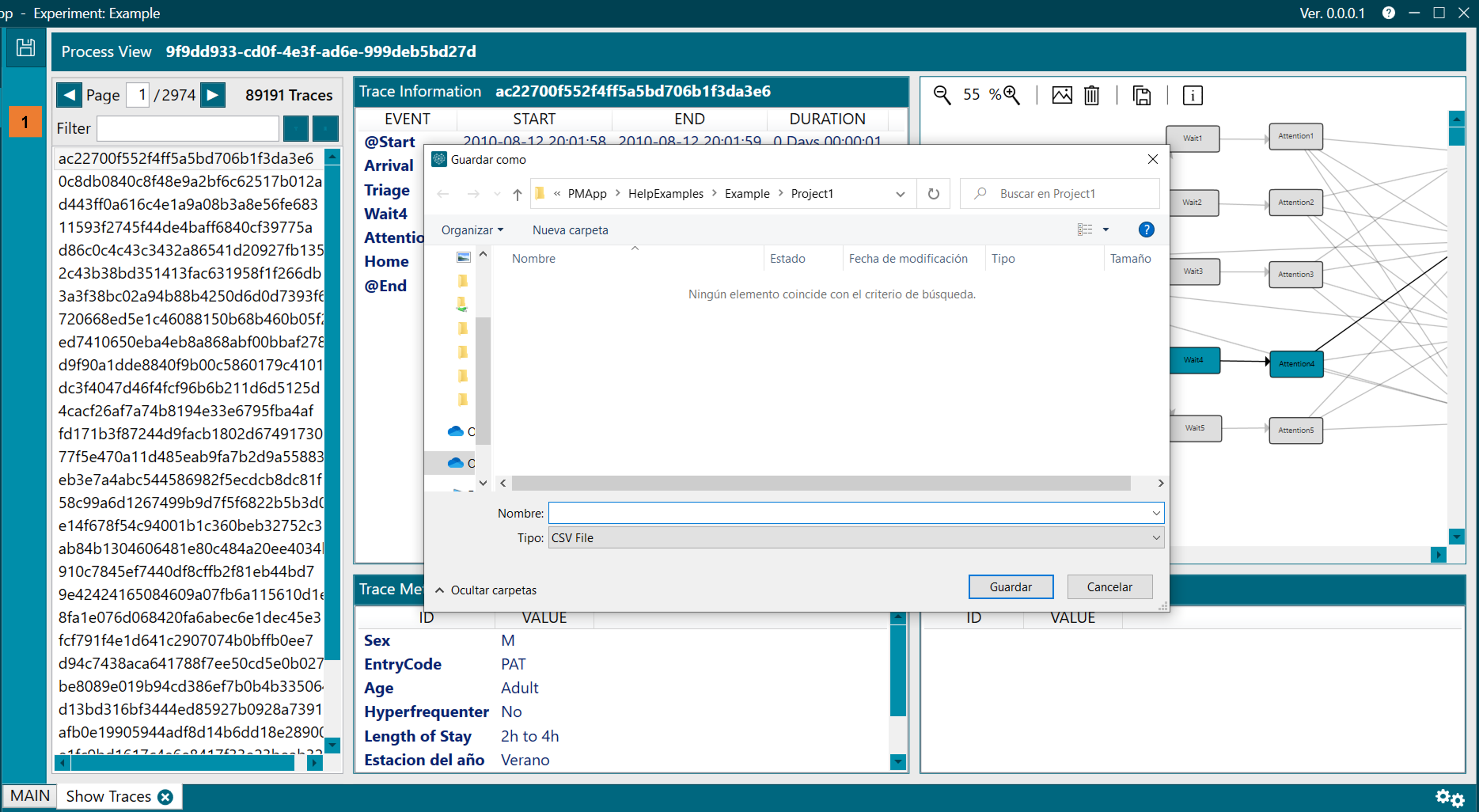

Figure 2. Save to CSV file menu from Trace Information
